Nokia 6070 – USB infrared dongle – Now best buddies

My infrared dongle

I surprised Ioana today with a shiny new Nokia 6070. Yep, I’m a nice guy… :-)

Obviously one of the first things I tried after putting my paws on the phone (hehe – there was a new gadget in the house after all!) was to upload some short MP3 clips to test out it’s MP3 ringtone capability. But to my disappointment my USB IrDA dongle was behaving miserably making the tests rather frustrating. It was whether complaining about range problems although the dongle was less than 1 centimeter from the phone’s port whether the transfer was locking up in a purely random way. It was clear that something wasn’t right just by looking at the dongle’s activity LED which was blinking rather seldomly as opposed to the way it used to when it was transferring photos or ringtones to or from my good old Sony-Ericsson T610. I did succeed in transferring a 100 kilobyte file once but the cost was a few minutes (3 or 4) of wait. So I started digging in the dongle’s config and after a few minutes of messing around I found the (rather easy) solution.

Here’s what to do if you get miserable transfer speeds between your handheld device and your computer’s (USB) infrared port.

1. After a connection is estabilished between the device and your computer right click on the icon in your tray and select “Properties” (Screenshot).

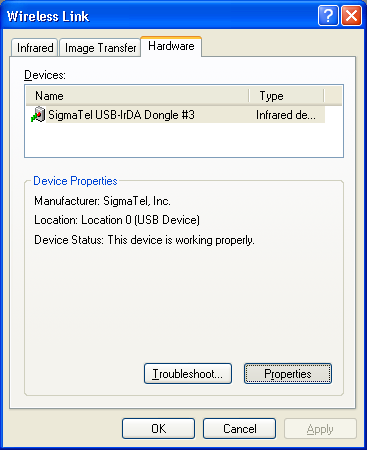

2. In the window that appears click the “Hardware” tab and then click on the “Properties” button (Another screenshot).

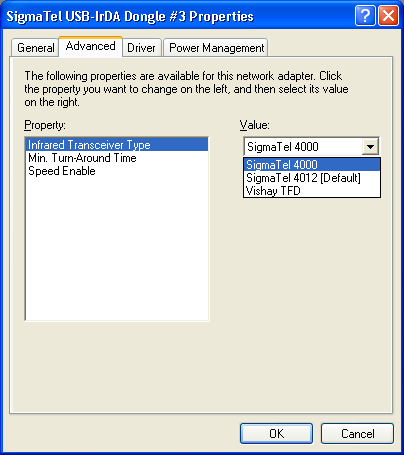

3. Another window will pop up. Click the “Advanced” tab and for the “Infrared Transceiver Type” property set the value from the default “SigmaTel 4012″ to “SigmaTel 4000″ (The last screenshot).

4. Close the windows by clicking their OK buttons and that’s about it. Now your phone will speedily talk with your computer via the magic of infrared and you will transfer files like crazy… Or at least as fast as the infrared port permits.

I hope this entry will help somebody out there.

9 Responses to “Nokia 6070 – USB infrared dongle – Now best buddies”

  1. JP Cabrales  on May 20th, 2007

    Thank you so much for this blog post! It helped me a lot in figuring out what’s wrong with my Nokia 6070 to PC’s IRDA connection thru USB. I knew it had to do something with the Wireless Link properties but I just don’t know (and couldn’t find it on the Nokia site as well) how to configure it right!
    Not only are you a nice guy by surprising Ioana, but you are a nice guy for sharing this one on the web. Once again, thank you very much!

  2. shankar  on July 21st, 2007

    do you Know how to configure the wireless connectivity using access points.

  3. marc  on February 15th, 2008

    thank u very much this information are very usefull

  4. cpyadav  on November 14th, 2008

    I WANT PURCHASE USB INFRARED DONGLE FOR NOKIA 7070. PLEASE TELL ME WHERE I CAN PURCHASE IT. SEND ADDESSES. MY MOBILE NO. IS 9411990218. NOKIA HAS NOT SUPPLIED THIS DEVICE ALONG WITH SET.

  5. CPYADAV  on November 14th, 2008

    I WANT PURCHASE USB INFRARED DONGLE FOR NOKIA 6070. PLEASE TELL ME WHERE I CAN PURCHASE IT. SEND ADDESSES. MY MOBILE NO. IS 9411990218. NOKIA HAS NOT SUPPLIED THIS DEVICE ALONG WITH SET.
    IT IS AFTER CORRECTION.
    C P YADAV II-12 NTPC AURAIYA UP

  6. Asti west  on October 27th, 2009

    Yesssssssssss!!!
    It’s ok with HP compaq Athlon x2 and Vista basic.
    Thanks and best regards.

  7. Mahesh kumar, G.  on October 27th, 2009

    Please tell me where do i get USB Infrared dongel for my Nokia 6070. And also please mention the price. My mobile No. is 9042961805.
    Thanks and regards

  8. ayazrockin  on December 28th, 2009

    hi frndz me 4m chennai am using nokia 6070 i need to knw the infrared dongle can be use in my nokia6070 cell……….if any 1 knw meanz jus contac my email…. ayazrockin@gmail.com

  9. old school  on September 5th, 2010

    Thank you very much. This was very helpful!!
    did the trick for me.
    Thanks again.
